FC2-221 / FC3-221E / FC3-261

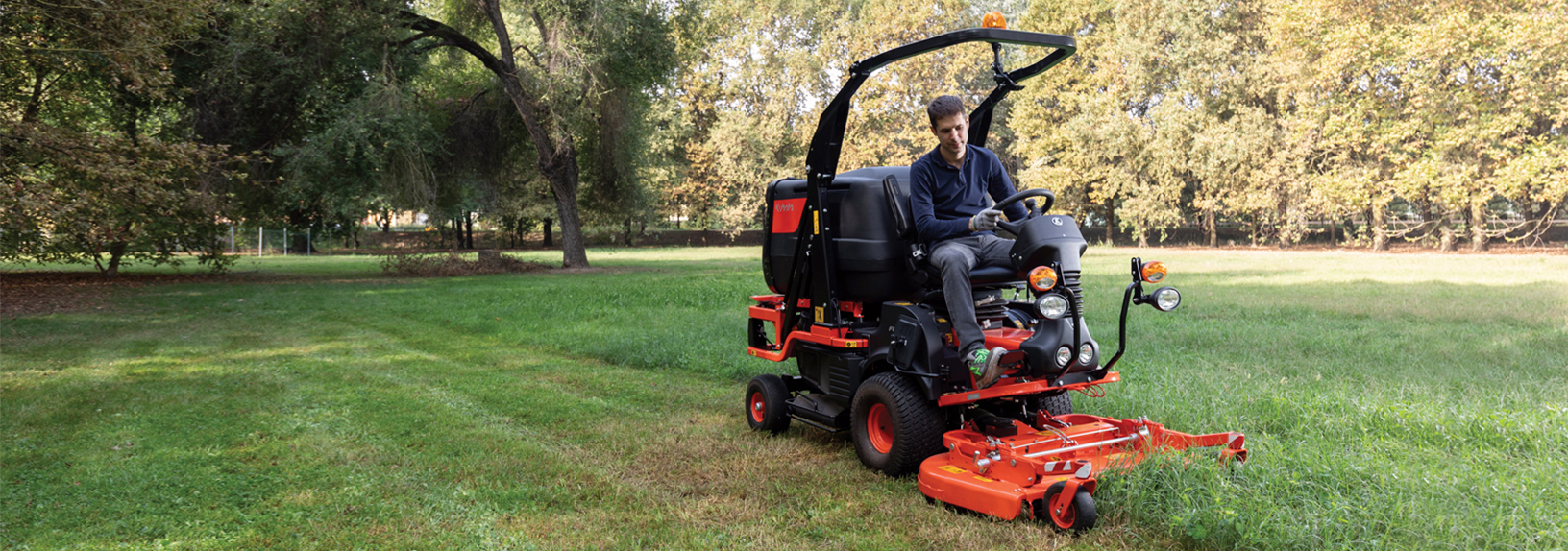

Kubota Kubota FC Series Out Front Mower
×
The Kubota FC Series range delivers a powerful combination of agility, versatility and smart engineering across three purpose‑built models designed for efficient cut‑and‑collect mowing. Each machine is driven by Kubota’s reliable diesel engines, smooth hydrostatic transmissions and a diverse choice of decks to suit varied cutting requirements. With hydraulically operated high‑dump collectors across the lineup, the FC Series handles everything from tight urban spaces to wide parklands with ease. Operator comfort and usability are front and centre, with ergonomic controls, spacious platforms and intuitive operation built into every model. Whether you’re navigating confined areas or covering big open grounds, the FC Series delivers strong traction, low‑maintenance engineering and all‑day comfort to tackle demanding mowing environments with confidence.
Product Features
Powerful, efficient Kubota diesel engines with E‑TVCS
FC Series mowers are powered by reliable Kubota 3‑cylinder liquid‑cooled diesel engines featuring E‑TVCS (Three‑Vortex Combustion System) technology, which improves combustion efficiency for lower fuel use, reduced noise, stronger power delivery and smooth engine start‑up. The result is a dependable engine platform built to support long hours of cut‑and‑collect work.
High‑capacity, high‑dump collection with safe, efficient emptying
High‑dump grass collectors ranging from 480 to 800 litres deliver fast transfer and clean discharge, supported by a hydraulically lever operated parallelogram lift system that provides high‑tipping clearance and a stable, controlled lift path. This design allows operators to empty clippings safely and efficiently into skips, trucks or bins with minimal spillage and reduced downtime.
Traction you can trust
The combination of 4‑wheel drive and Kubota’s HTC™ Hydrostatic Traction Control (FC2‑221 and FC3‑261 models) delivers confident traction on slopes and uneven terrain, ensuring constant drive in all operating conditions. Separate drive motors on each axle enable independent speed control, maintaining permanent traction on all four wheels while preventing turf damage from skids or slippage during tight turns. The result is greater stability, smoother manoeuvring and enhanced operator safety across demanding mowing environments.
Designed for operator comfort and all‑day productivity
The FC Series is built for operator comfort, featuring supportive seats designed to minimise fatigue across long workdays. Hydraulic power steering paired with a comfortable steering wheel, complete with fast‑turn knob and tilt adjustment, provides smooth, effortless control in any operating environment. The spacious operator platform includes a generous, angled floor area for relaxed posture and easy pedal operation, while a clear digital instrument panel (FC3-221E and FC3-261 models) keeps key information in view at a glance. All control levers and switches are ergonomically positioned for easy reach and intuitive operation, enhancing overall productivity and ease of use.
Deck options for multiple applications
Multiple deck options are available to suit a variety of mowing applications. The FC3‑221E and FC3‑261 models deliver drive to the deck via a shaft, and a central suction turbine transfers cut grass rapidly to the collector, minimising travel distance and enhancing overall stability. The FC2‑221 model provides deck drive through hydraulic motors, making attaching and detaching the deck quick and easy. Across the range, a lever‑controlled lift and lower system makes deck operation quick and effortless for cleaning and maintenance.
Specifications
| Name | FC2-221 | FC3-221E | FC3-261 |
|---|---|---|---|
| Engine Type | Liquid-cooled | Liquid-cooled | Liquid-cooled |
| Fuel Type | Diesel | Diesel | Diesel |
| Cylinders | 3 | 3 | 3 |
| Engine Model | Kubota D902 | Kubota D902 | Kubota D1105 |
| Engine Gross | 22 hp | 22 hp | 26 hp |
| Displacement | 898 cc | 898 cc | 1123 cc |
| Fuel Tank Capacity | 16 l | 30 l | 30 l |
| Rated Speed | 3200 rpm | 3200 rpm | 3000 rpm |
| Name | FC2-221 | FC3-221E | FC3-261 |
|---|---|---|---|
| Transmission | HST | HST | HST |
| Drive Method | 4WD | 2WD | 4WD |
| Brakes | Hydrostatic service brake; drum parking brake | Hydrostatic service brake; disc parking brake | Hydrostatic service brake; disc parking brake |
| PTO | Hydraulic drive to mower deck | Shaft drive to mower deck | Shaft drive to mower deck |
| Name | FC2-221 | FC3-221E | FC3-261 |
|---|---|---|---|
| Front | 18x8.5-8 | 20x10-8 | 23x10.5-12 |
| Rear | 15x6-6 | 15x6-6 | 16x7.5-8 |
| Name | FC2-221 | FC3-221E | FC3-261 |
|---|---|---|---|
| Max. Forward Speed | 10.9 km/h | 11 km/h | 13.7 km/h |
| Max. Reverse Speed | 5 km/h | 6 km/h | 10 km/h |
| Name | FC2-221 | FC3-221E | FC3-261 |
|---|---|---|---|
| Bag Type | Hopper with direct channeling chute | Hopper with suction turbine | Hopper with suction turbine |
| Bag Capacity | 480 l | 600 l | 800 l |
| Chute - Diameter | 258 x 196 (rectangle) mm | 167 mm | 167 mm |
| Dump Height | 1650 mm | 1900 mm | 2050 mm |
| Name | FC2-221 | FC3-221E | FC3-261 |
|---|---|---|---|
| Length | 2225 mm | 2295 mm | 2235 mm |
| Width | 1000 mm | 1105 mm | 1125 mm |
| Height | 2000 mm | 2010 mm | 2050 mm |
| Wheelbase | 1100 mm | 1260 mm | 1260 mm |
| Ground Clearance | 95 mm | 120 mm | 125 mm |
| Tread Front | 770 mm | 850 mm | 850 mm |
| Tread Rear | 765 mm | 900 mm | 900 mm |
| Turning Radius | 595 mm | 685 mm | 600 mm |
| Weight | 657 kg | 823 kg | 1000 kg |
